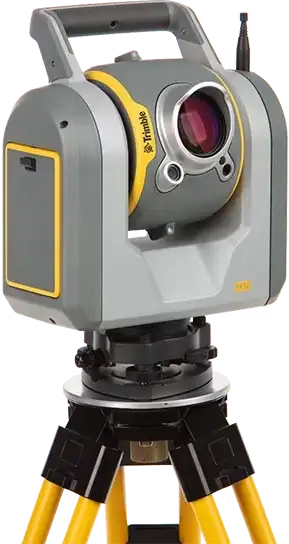

Trimble SX12

High accuracy total station, high-quality scan data

• 1″ angular accuracy
• 1.5 mm scan range noise at 200 m
• 14 mm diameter EDM laser spot at 100 m

Vivid, eye-safe laser pointer

• Green and focusable, this laser pointer is exceptionally small, bright, and still eye safe
• 3 mm diameter laser pointer spot at 50 m

Quick data capture, even at long range

• 26.6 kHz scan measurement rate, up to 600 m
• 1.6 s total station measuring time in prism mode
• 1.2 s total station measuring time in DR mode

Simple navigation and documentation with Trimble VISION™ camera system

• Improved Trimble VISION™ technology allows for fast and easy capture of high-resolution site imagery.
• Three integrated and calibrated cameras in the telescope

Complete system for tunnel surveying and construction

• Complete integration with familiar workflows of Trimble Access and Trimble Business Center Tunneling software for every phase of the tunnel lifecycle
